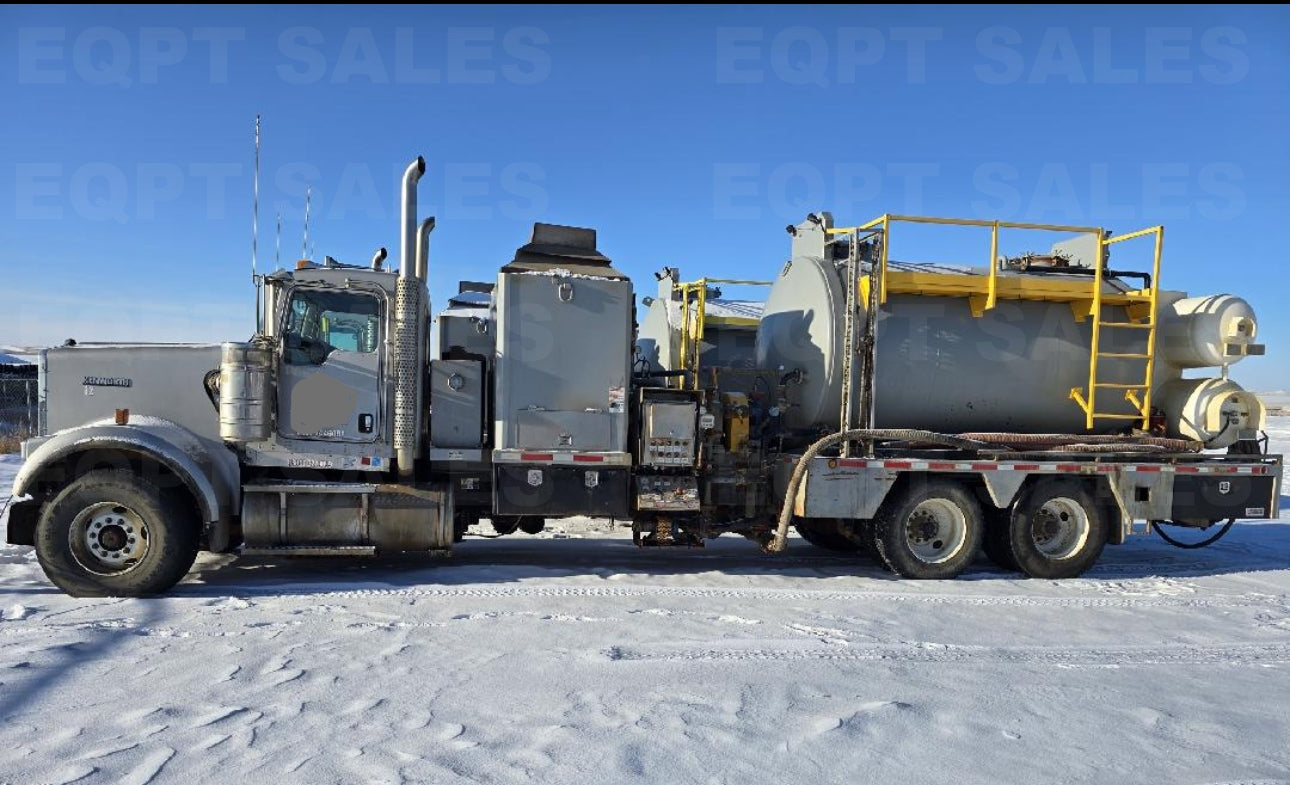

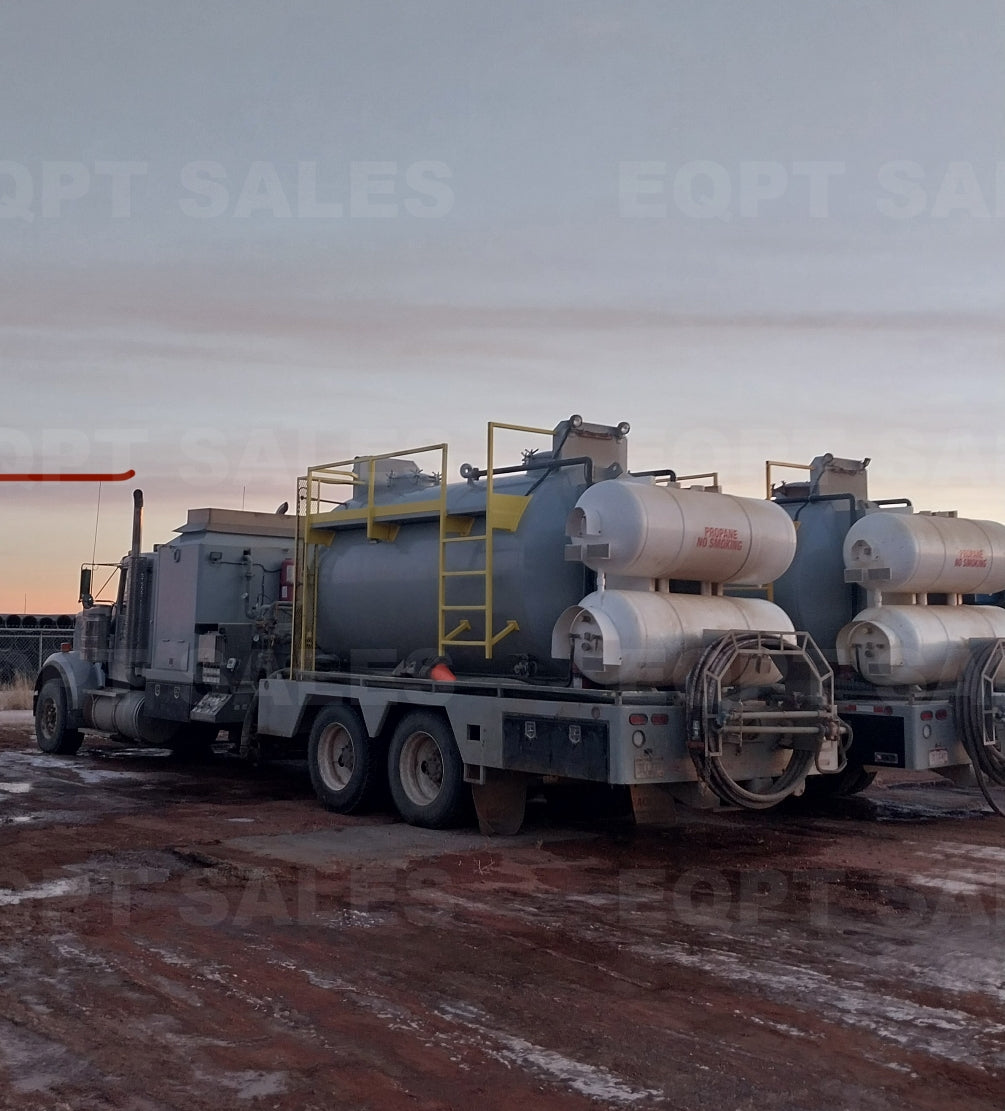

2015 Kenworth Hot Oil Truck (Truck 12)

BODY TANK


6454 HRS

66877 Miles

75 BBL capacity tank, 1/4” steel shell and heads, with 2 baffles
Sump for full bottom suction
Hydraulically driven load and charge pump


FLUID HEATER

7 Million BTU input, propane fired
Direct spark ignited pilot with manual control valve
2” SCH 40 A106 pipe, heat exchanger core with finned pipe on top 2 layers
Single pass design, pressure tested to 3000 psi, direct fired
4” Ceramic fiber insulation, 2300 DEG rated
Insulated top with stainless steel hood

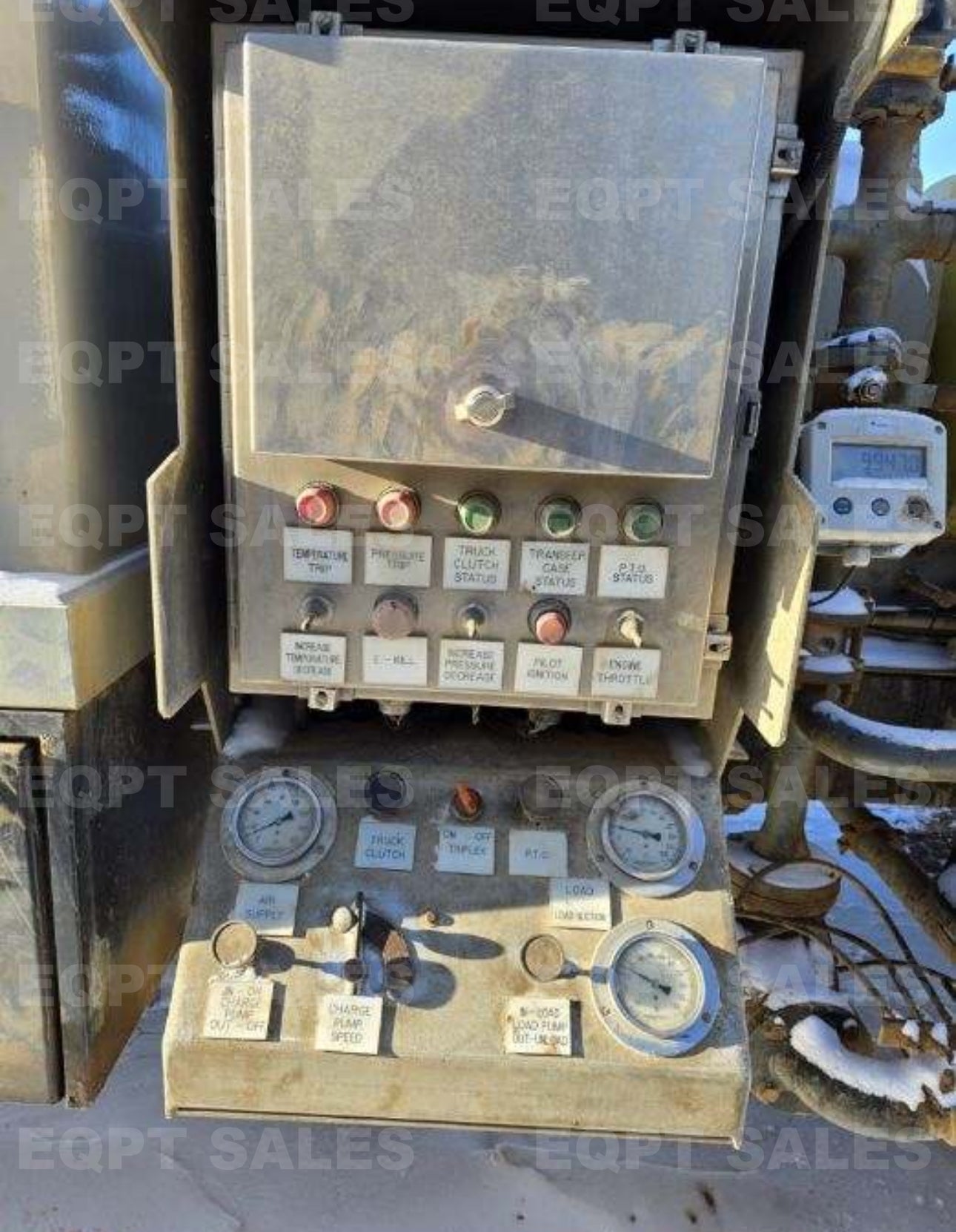

CONTROL SYSTEM:

Road side mounted control station
Lower panel with manual controls for truck clutch, transfer case, truck PTO, load/unload pump, charge pump, air pressure gauge, load/unload pressure gauges, main power switch, sight glass wash pump switch Upper panel with touch screen display, indicator lights for lower panel controls, user adjustable setting switches, igniter switch, E-Kill switch, trip status lights, throttle adjustment switch, fire system discharge switch
Heater system controls include; electronic fuel valve, over temperature stop, over core pressure stop, flow switch stop (loss of flow), igniter switch
Heater system displays include; core inlet/outlet temperature, core inlet/ outlet pressure, fuel pressure
High pressure pump controls include; over pressure trip, barrel rate set up
High pressure pump displays include; discharge pressure, barrel per minute, barrel totals
Other displays include; critical engine data, engine trouble codes, charge pump (system) flow meter (rate/total)
ADDITIONAL ITEMS:

Spicer 784 auxiliary transmission to drive high pressure pump
150 gal hydraulic oil tank with return line filter
Curb side mounted iron rack, 8 PCS 13’ long x 1 1/2” pipe with unions
Tool boxes, 1 – 36 “ long driver side @barrel center, 2 – 48” long each side at rear
Chemical tanks, 2 – 25 gal each @ each side rear
Rear hose rack
Hose rack on curb side near charge pump hose storage at rear under tank, 4 – 10’ tubes
Fire extinguishers, 3 – 20lb a/b/c
Work lights, 6 LED, 4 between heater chamber and front of tank, 2 at rear of tank

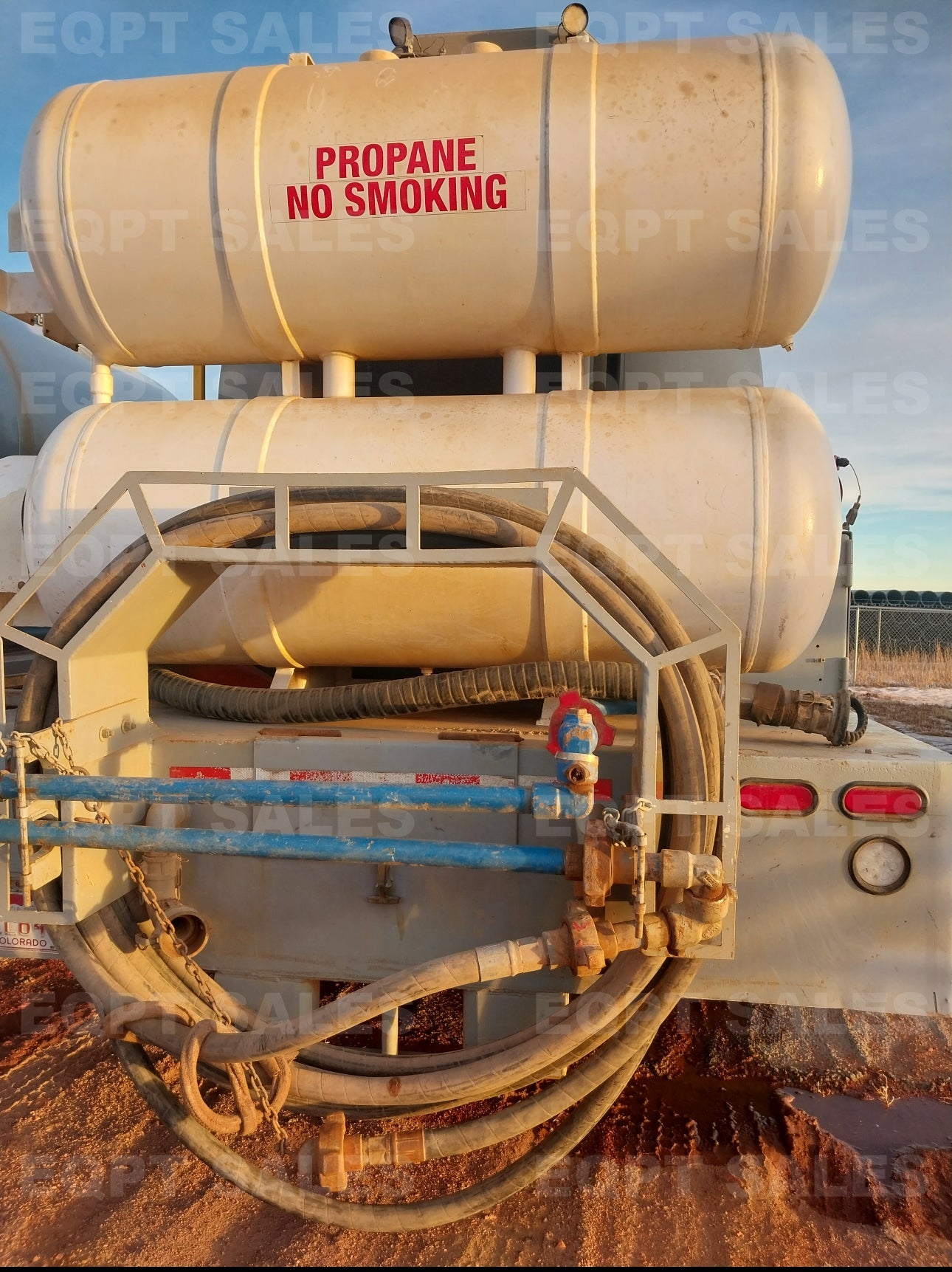

Twin stack ASME propane tank at rear, 480 gal nominal
LED tail, reverse, and marker lights
All surfaces primed and painted with high solids urethane paint


LOAD PUMP:

3” Roper, model 5558, hydraulically driven,
Bi-Rotational


CHARGE PUMP:

3” X 2” Viking, LV3900, hydraulically driven, variable speed


HIGH PRESSURE PUMP:

Gardner Denver, TEE Triplex Pump 3” plungers, 5” stroke
80-3 Chain drive, 52/15 sprockets, tensioner bolts on driver side with guard
2” Threaded pipe installed for customer installed pressure reli
